Ordnance Survey planning maps
1:10000 Regional Context Plan
Show where a very large site sits in the wider area. View a 320 hectare A4 portrait example centred on Cambridge.
When to choose 1:10000
Choose 1:10000 for a broad overview of a substantial site and the surrounding road network or settlements. It is most useful as wider context; individual site details appear small, so a closer-scale plan may also be needed for an application.
What the sample shows

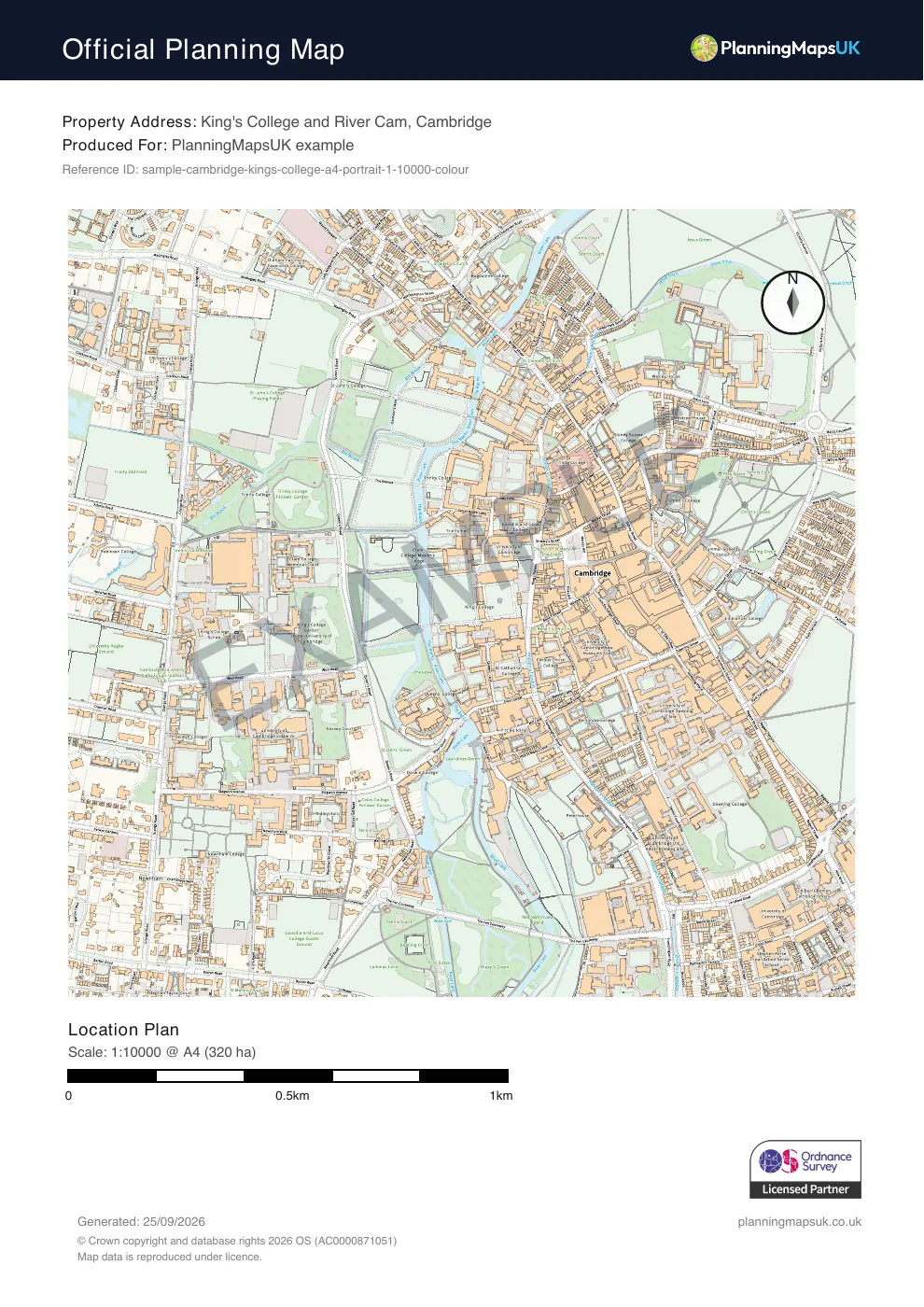

The Cambridge example covers 320 hectares on an A4 portrait sheet. Open the colour and black-and-white previews to see how this wider map reads in each style.
At 1:10000, 1 cm on the printed page represents 100 metres on the ground. It shows twice the distance of 1:5000 in the same space, giving a regional view rather than detailed plot layout.
The sample is centred on King's College, Cambridge and marked EXAMPLE. It illustrates the map output; mark your own site boundary and check the local authority's requirements when creating your plan.
Next step
Use the location plan builder to find your site and frame the 320 hectare area. Check the authority requirements and add any closer-scale plans needed to show the precise site boundary.
