Ordnance Survey planning maps
1:5000 Large Scale Location Plan
Place a substantial site in its wider landscape. Explore 50, 75 and 80 hectare A4 portrait examples at the same scale.
When to choose 1:5000
Choose 1:5000 when a landholding or project area needs a wider view than the available 1:2500 coverage. It helps show how roads, settlements and other features relate to the site, while smaller features will be less prominent. Check whether your planning authority also needs a closer location or block plan.
What the sample shows
The Cambridge examples cover 50, 75 and 80 hectares. This page shows the 80 hectare option. Each sheet keeps the 1:5000 scale and changes only the area included.
At 1:5000, 1 cm on the printed page represents 50 metres on the ground. It shows twice the distance of 1:2500 in the same space. A 1:10000 plan provides still wider regional context.

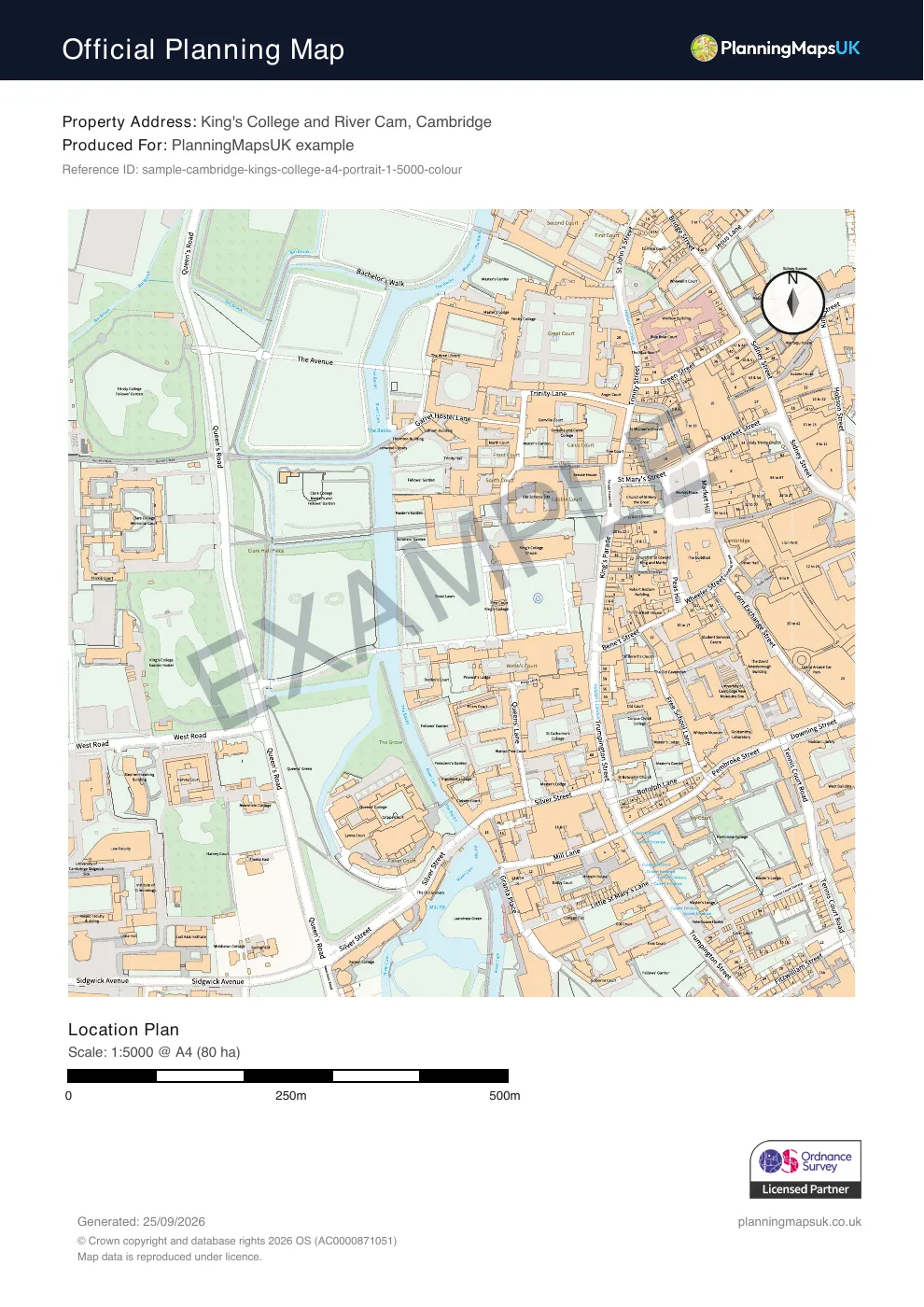

The sample is centred on King's College, Cambridge and marked EXAMPLE. It illustrates the map output; mark your own site boundary and check the local authority's requirements when creating your plan.
Next step
Search the site in the location plan builder, choose enough coverage for the whole area and its context, then draw the boundary. If fine site detail matters, prepare a separate closer-scale plan too.
